Micromachined cantilevers-on-membrane topology for broadband vibration energy harvesting
Jia, Yu Du, Sijun Seshia, Ashwin A.
Jia, Yu
Du, Sijun
Seshia, Ashwin A.
Advisors
Editors
Other Contributors
Affiliation
EPub Date
Publication Date
2016-10-17
Submitted Date
Collections
Files
Loading...

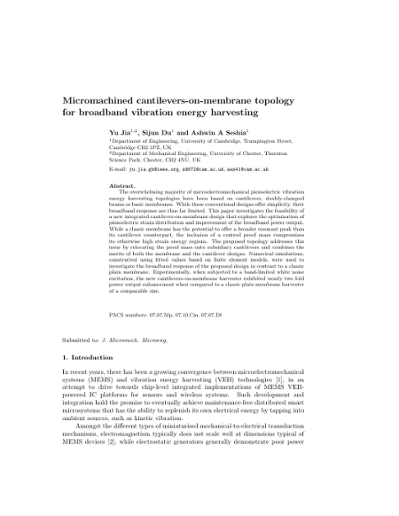

Author's manuscript
Adobe PDF, 3.92 MB
Other Titles
Abstract
The overwhelming majority of microelectromechanical piezoelectric vibration energy harvesting topologies have been based on cantilevers, doubly-clamped beams or basic membranes. While these conventional designs offer simplicity, their broadband responses have been limited thus far. This paper investigates the feasibility of a new integrated cantilevers-on-membrane design that explores the optimisation of piezoelectric strain distribution and improvement of the broadband power output. While a classic membrane has the potential to offer a broader resonant peak than its cantilever counterpart, the inclusion of a centred proof mass compromises its otherwise high strain energy regions. The proposed topology addresses this issue by relocating the proof mass onto subsidiary cantilevers and combines the merits of both the membrane and the cantilever designs. Numerical simulations, constructed using fitted values based on finite element models, were used to investigate the broadband response of the proposed design in contrast to a classic plain membrane. Experimentally, when subjected to a band-limited white noise excitation, the new cantilevers-on-membrane harvester exhibited nearly two fold power output enhancement when compared to a classic plain membrane harvester of a comparable size.
Citation
Jia, Y., Du, S., & Seshia, A. A. (2016). Micromachined cantilevers-on-membrane topology for broadband vibration energy harvesting. Journal of Micromechanics and Microengineering, 26(12). DOI: 10.1088/0960-1317/26/12/124007
Publisher
IOP Publishing
Journal
Journal of Micromechanics and Microengineering
Research Unit
DOI
10.1088/0960-1317/26/12/124007
PubMed ID
PubMed Central ID
Type
Article
Language
en
Description
This is an author-created, un-copyedited version of an article accepted for publication in Journal of Micromechanics and Microengineering. The publisher is not responsible for any errors or omissions in this version of the manuscript or any version derived from it. The Version of Record is available online at http://iopscience.iop.org/article/10.1088/0960-1317/26/12/124007.
