Electromagnetic wave absorption properties of ternary poly (vinylidene fluoride)/magnetite nanocomposites with carbon nanotubes and graphene

Tsonos, Christos
;
Soin, Navneet
;
Tomara, Georgia N.
;
Yang, Bin
;
Psarras, Georgios C.
;
Kanapitsas, Athanasios
;
Siores, Elias
Advisors
Editors
Other Contributors
Affiliation
University of Chester
EPub Date
Publication Date
2015-12-21
Submitted Date
Collections
Electronic and Electrical Engineering
Show all metadata
Files

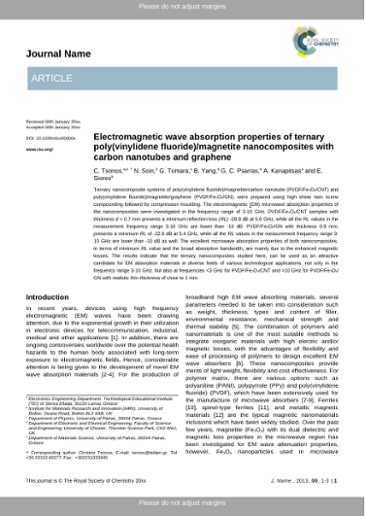

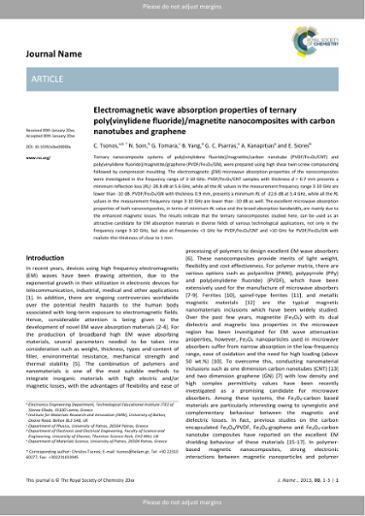

Thumbnail Image
Main article
Adobe PDF, 855.2 KB
Other Titles
Abstract
Ternary nanocomposite systems of poly(vinylidene fluoride)/magnetite/carbon nanotube (PVDF/Fe3O4/CNT) and poly(vinylidene fluoride)/magnetite/graphene (PVDF/Fe3O4/GN), were prepared using high shear twin screw compounding followed by compression moulding. The electromagnetic (EM) microwave absorption properties of the nanocomposites were investigated in the frequency range of 3–10 GHz. PVDF/Fe3O4/CNT samples with the thickness d = 0.7 mm present a minimum reflection loss (RL) of −28.8 dB at 5.6 GHz, while all the RL values in the measurement frequency range 3–10 GHz are lower than −10 dB. PVDF/Fe3O4/GN with a thickness of 0.9 mm, presents a minimum RL of −22.6 dB at 5.4 GHz, while all the RL values in the measurement frequency range 3–10 GHz are lower than −10 dB as well. The excellent microwave absorption properties of both nanocomposites, in terms of minimum RL value and broad absorption bandwidth, are mainly due to the enhanced magnetic losses. The results indicate that the ternary nanocomposites studied here, can be used as an attractive candidate for EM absorption materials in diverse fields of various technological applications, not only in the frequency range 3–10 GHz, but also at frequencies <3 GHz for PVDF/Fe3O4/CNT and >10 GHz for PVDF/Fe3O4/GN with a realistic thickness of close to 1 mm.
Citation
Tsonos, C., Soin, N., Tomara, G., Yang, B., Psarras, G. C., Kanapitsas, A., & Siores, E. (2016). Electromagnetic wave absorption properties of ternary poly (vinylidene fluoride)/magnetite nanocomposites with carbon nanotubes and graphene. RSC Advances, 6(3), 1919-1924. DOI: 10.1039/C5RA24956B
Publisher
Royal Society of Chemistry
Journal
RSC Advances
Research Unit
URI
http://hdl.handle.net/10034/601576
DOI
10.1039/C5RA24956B
PubMed ID
PubMed Central ID
Type
Article
Language
en
Description
Series/Report no.
ISSN
EISSN
2046-2069
ISBN
ISMN
Gov't Doc
Test Link
Sponsors
Additional Links
http://pubs.rsc.org/en/content/articlelanding/2016/ra/c5ra24956b#!divAbstract
