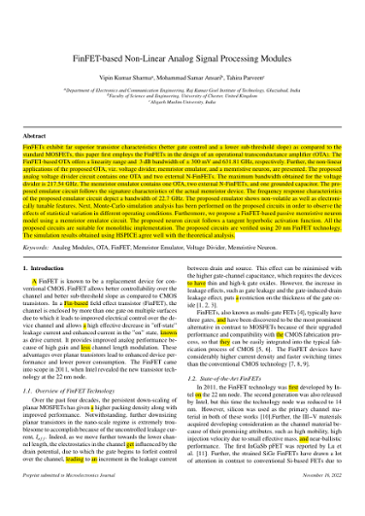

FinFET-based non-linear analog signal processing modules
Sharma, Vipin Kumar Ansari, Mohammad Samar Parveen, Tahira
Sharma, Vipin Kumar
Ansari, Mohammad Samar
Parveen, Tahira
Advisors
Editors
Other Contributors
Affiliation
EPub Date
Publication Date
2022-11-08
Submitted Date
Collections
Files
Loading...
Article
Adobe PDF, 2.45 MB
Other Titles
Abstract
FinFETs exhibit far superior transistor characteristics (better gate control and a lower sub-threshold slope) as compared to the standard MOSFETs, this paper first employs the FinFETs in the design of an operational transconductance amplifier (OTA). The FinFET-based OTA offers a linearity range and - 3 dB bandwidth of 300 mV and 631.81 GHz, respectively. Further, the non-linear applications of the proposed OTA, viz. voltage divider, memristor emulator, and a memristive neuron, are presented. The proposed analog voltage divider circuit contains one OTA and two external N-FinFETs. The maximum bandwidth obtained for the voltage divider is 217.54 GHz. The memristor emulator contains one OTA, two external N-FinFETs, and one grounded capacitor. The proposed emulator circuit follows the signature characteristics of the actual memristor device. The frequency response characteristics of the proposed emulator circuit depict a bandwidth of 22.7 GHz. The proposed emulator shows non-volatile as well as electronically tunable features. Next, Monte-Carlo simulation analysis has been performed on the proposed circuits in order to observe the effects of statistical variation in different operating conditions. Furthermore, we propose a FinFET-based passive memristive neuron model using a memristor emulator circuit. The proposed neuron circuit follows a tangent hyperbolic activation function. All the proposed circuits are suitable for monolithic implementation. The proposed circuits are verified using 20 nm FinFET technology. The simulation results obtained using HSPICE agree well with the theoretical analysis.
Citation
Sharma, V. K., Ansari, M. S., & Parveen, T. (2023). FinFET-based non-linear analog signal processing modules. Microelectronics Journal, 131, 105626. https://doi.org/10.1016/j.mejo.2022.105626
Publisher
Elsevier
Journal
Microelectronics Journal
Research Unit
DOI
10.1016/j.mejo.2022.105626
PubMed ID
PubMed Central ID
Type
Article
Language
Description
Series/Report no.
ISSN
0026-2692
