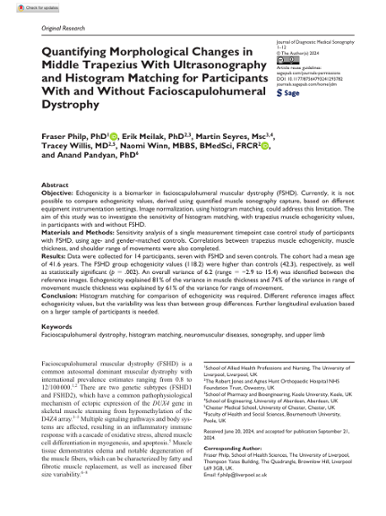

Quantifying morphological changes in middle trapezius with ultrasonography and histogram matching for participants with and without Facioscapulohumeral Dystrophy

Philp, Fraser
;
Meilak, Erik
;
Seyres, Martin
;
Willis, Tracey
;
Winn, Naomi
;
Pandyan, Anand
Advisors
Editors
Other Contributors
Affiliation
University of Liverpool; Robert Jones and Agnes Hunt Orthopaedic Hospital NHS Foundation Trust; Keele University; University of Aberdeen; University of Chester; Bournemouth University
EPub Date
Publication Date
2024-11-15
Submitted Date
Collections
Harvested data
Show all metadata
Files
Thumbnail Image
Article - VoR
Adobe PDF, 694.87 KB
Other Titles
Abstract
Objective: Echogenicity is a biomarker in facioscapulohumeral muscular dystrophy (FSHD). Currently, it is not possible to compare echogenicity values, derived using quantified muscle sonography capture, based on different equipment instrumentation settings. Image normalization, using histogram matching, could address this limitation. The aim of this study was to investigate the sensitivity of histogram matching, with trapezius muscle echogenicity values, in participants with and without FSHD. Materials and Methods: Sensitivity analysis of a single measurement timepoint case control study of participants with FSHD, using age- and gender-matched controls. Correlations between trapezius muscle echogenicity, muscle thickness, and shoulder range of movements were also completed. Results: Data were collected for 14 participants, seven with FSHD and seven controls. The cohort had a mean age of 41.6 years. The FSHD group echogenicity values (118.2) were higher than controls (42.3), respectively, as well as statistically significant ( p = .002). An overall variance of 6.2 (range = −2.9 to 15.4) was identified between the reference images. Echogenicity explained 81% of the variance in muscle thickness and 74% of the variance in range of movement muscle thickness was explained by 61% of the variance for range of movement. Conclusion: Histogram matching for comparison of echogenicity was required. Different reference images affect echogenicity values, but the variability was less than between group differences. Further longitudinal evaluation based on a larger sample of participants is needed.
Citation
Philp, F., Meilak, E., Seyres, M., Willis, T., Winn, N., & Pandyan, A. (2024). Quantifying morphological changes in middle trapezius with ultrasonography and histogram matching for participants with and without facioscapulohumeral dystrophy. Journal of Diagnostic Medical Sonography, 41(3), 263-274. https://doi.org/10.1177/87564793241293782
Publisher
SAGE Publications
Journal
Journal of Diagnostic Medical Sonography
Research Unit
URI
http://hdl.handle.net/10034/629157
DOI
10.1177/87564793241293782
PubMed ID
PubMed Central ID
Type
Article
Language
Description
© The Author(s) 2024.
Series/Report no.
ISSN
8756-4793
EISSN
1552-5430
ISBN
ISMN
Gov't Doc
Test Link
Sponsors
This work was funded by the Orthopaedic Institute Limited: Award RPG185
Additional Links
https://journals.sagepub.com/doi/10.1177/87564793241293782
