Cantilevers-on-membrane design for broadband MEMS piezoelectric vibration energy harvesting
Jia, Yu Du, Sijun Seshia, Ashwin A.
Jia, Yu
Du, Sijun
Seshia, Ashwin A.
Advisors
Editors
Other Contributors
Affiliation
EPub Date
Publication Date
2015-12-01
Submitted Date
Collections
Files
Loading...

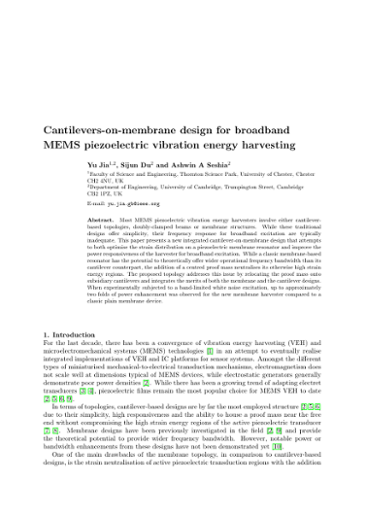

Main article
Adobe PDF, 1.81 MB
Other Titles
Abstract
Most MEMS piezoelectric vibration energy harvesters involve either cantilever-based topologies, doubly-clamped beams or membrane structures. While these traditional designs offer simplicity, their frequency response for broadband excitation are typically inadequate. This paper presents a new integrated cantilever-on-membrane design that attempts to both optimise the strain distribution on a piezoelectric membrane resonator and improve the power responsiveness of the harvester for broadband excitation. While a classic membrane-based resonator has the potential to theoretically offer wider operational frequency bandwidth than its cantilever counterpart, the addition of a centred proof mass neutralises its otherwise high strain energy regions. The proposed topology addresses this issue by relocating the proof mass onto subsidiary cantilevers and integrates the merits of both the membrane and the cantilever designs. When experimentally subjected to a band-limited white noise excitation, up to approximately two folds of power enhancement was observed for the new membrane harvester compared to a classic plain membrane device.
Citation
Jia,Y., Du, S., & Seshia, A. A. (2015). Cantilevers-on-membrane design for broadband MEMS piezoelectric vibration energy harvesting. Journal of Physics: Conference Series, 660(1), 012030. DOI: 10.1088/1742-6596/660/1/012030
Publisher
IOP Publishing
Journal
Journal of Physics: Conference Series
Research Unit
DOI
10.1088/1742-6596/660/1/012030
PubMed ID
PubMed Central ID
Type
Article
Language
en
Description
Series/Report no.
ISSN
EISSN
1742-6596
