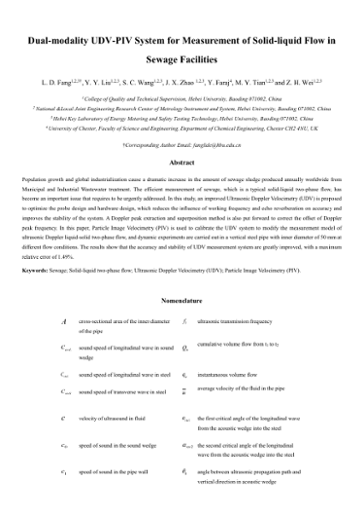

Dual-modality UDV-PIV system for measurement of solid-liquid flow in sewage facilities
Fang, Lide Liu, Yueyuan Wang, Shaochong Zhao, Jixun Faraj, Yousef Tian, Mengyuan Wei, Zihui
Fang, Lide
Liu, Yueyuan
Wang, Shaochong
Zhao, Jixun
Faraj, Yousef
Tian, Mengyuan
Wei, Zihui
Advisors
Editors
Other Contributors
Affiliation
EPub Date
Publication Date
2021-10-19
Submitted Date
Collections
Files
Loading...
Article
Adobe PDF, 802.3 KB
Other Titles
Abstract
Population growth and global industrialization cause a dramatic increase in the amount of sewage sludge produced annually worldwide from Municipal and Industrial Wastewater treatment. The efficient measurement of sewage, which is a typical solid-liquid two-phase flow, has become an important issue that requires to be urgently addressed. In this study, an improved Ultrasonic Doppler Velocimetry (UDV) is proposed to optimize the probe design and hardware design, which reduces the influence of working frequency and echo reverberation on accuracy and improves the stability of the system. A Doppler peak extraction and superposition method is also put forward to correct the offset of Doppler peak frequency. In this paper, Particle Image Velocimetry (PIV) is used to calibrate the UDV system to modify the measurement model of ultrasonic Doppler liquid-solid two-phase flow, and dynamic experiments are carried out in a vertical steel pipe with inner diameter of 50 mm at different flow conditions. The results show that the accuracy and stability of UDV measurement system are greatly improved, with a maximum relative error of 1.49%.
Citation
Fang, L., Liu, Y., Wang, S., Zhao, J., Faraj, Y., Tian, M., & Wei, Z. (2021). Dual-modality UDV-PIV system for measurement of solid-liquid flow in sewage facilities. Flow Measurement and Instrumentation, 82, 102063. https://doi.org/10.1016/j.flowmeasinst.2021.102063
Publisher
Elsevier
Journal
Flow Measurement and Instrumentation
Research Unit
DOI
10.1016/j.flowmeasinst.2021.102063
PubMed ID
PubMed Central ID
Type
Article
Language
Description
Series/Report no.
ISSN
0955-5986
EISSN
1873-6998
