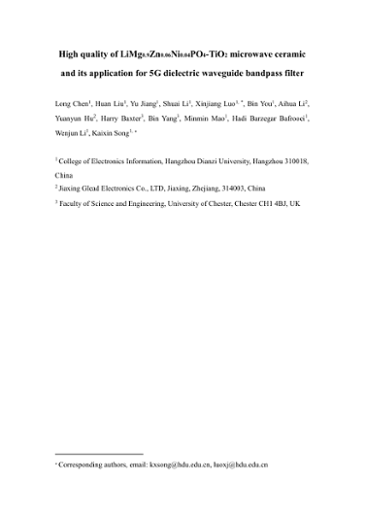

High quality of LiMg0.9Zn0.06Ni0.04PO4-TiO2 microwave ceramic and its application for 5G dielectric waveguide bandpass filter
Chen, Long Liu, Huan Jiang, Yu Li, Shuai Luo, Xinjiang You, Bin Li, Aihua Hu, Yuanyun Baxter, Harry Yang, Bin
Chen, Long
Liu, Huan
Jiang, Yu
Li, Shuai
Luo, Xinjiang
You, Bin
Li, Aihua
Hu, Yuanyun
Baxter, Harry
Yang, Bin
Advisors
Editors
Other Contributors
EPub Date
Publication Date
2023-01-30
Submitted Date
Collections
Files
Loading...
Article
Adobe PDF, 2.32 MB
Other Titles
Abstract
A new microwave dielectric composite ceramic (1-x) wt%LiMg0.9Zn0.06Ni0.04PO4-x wt%TiO2 (0≤x≤18wt%) was synthesized in the low sintering temperature range of 850 oC -975 oC by the solid-state reaction method. The XRD diffractogram confirmed the coexistence of LiMg0.9Zn0.06Ni0.04PO4 and TiO2, and no second phase was detected. Due to their opposite τf values, the τf values of LiMg0.9Zn0.06Ni0.04PO4 solid solution ceramics were adjusted by adding different volume fractions of TiO2. The composite ceramic with x=15wt% sintered at 975 oC shows desirable microwave dielectric properties of εr~10.30, Q×f ~ 58,400GHz (tanδ=2.093×10-4), and τf ~ +4.04ppm/ oC (at ~12GHz). Based on the 85wt% LiMg0.9Zn0.06Ni0.04PO4-15wt% TiO2 ceramics, a fourth order dielectric waveguide filter filled with composite ceramics is designed and packaged for the RF front-end of the China Mobile 5G base station. The test results show that the center frequency of the filter is 4.65GHz, the working bandwidth is 300MHz, the filter has a good out of band rejection capability, and the insertion loss in band is 0.18dB. Combined with the filter test data and material performance, the designed dielectric waveguide filter meets the communication requirements of the base station, and the higher Q×f microwave dielectric ceramic material can achieve low insertion loss and excellent frequency selection performance of the filter.
Citation
Chen, L., Liu, H., Jiang, Y,. Li, S., Luo, X., You, B., Li, A., Hu, Y., Baxter, H., Yang, B., Mao, M., Barzegar Bafrooei, H., Li, W., & Song, K. (2023). High quality of LiMg0.9Zn0.06Ni0.04PO4-TiO2 microwave ceramic and its application for 5G dielectric waveguide bandpass filter. Materials Today Communications, 35, 105500. https://doi.org/10.1016/j.mtcomm.2023.105500
Publisher
Elsevier
Journal
Materials Today Communications
Research Unit
DOI
10.1016/j.mtcomm.2023.105500
PubMed ID
PubMed Central ID
Type
Article
Language
Description
Series/Report no.
ISSN
No print ISSN
EISSN
2352-4928
