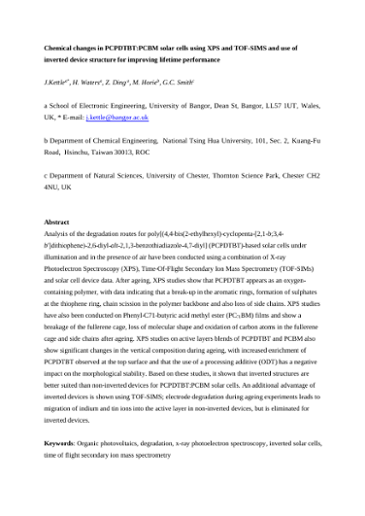

Chemical changes in PCPDTBT:PCBM solar cells using XPS and TOF-SIMS and use of inverted device structure for improving lifetime performance

Kettle, Jeff
;
Waters, Huw
;
Ding, Ziqian
;
Horie, Masaki
;
Smith, Graham C.
Advisors
Editors
Other Contributors
Affiliation
School of Electronic Engineering University of Bangor (Kettle, Waters, Ding), Department of Chemical Engineering National Tsing Hua University Taiwan (Horie), Department of Natural Sciences University of Chester (Smith)
EPub Date
Publication Date
2015-06-10
Submitted Date
Collections
Natural Sciences
Show all metadata
Files
Thumbnail Image
Article
Adobe PDF, 928.57 KB
Other Titles
Abstract
Analysis of the degradation routes for poly[(4,4-bis(2-ethylhexyl)-cyclopenta-[2,1-b;3,4-b′]dithiophene)-2,6-diyl-alt-2,1,3-benzothiadiazole-4,7-diyl] (PCPDTBT)-based solar cells under illumination and in the presence of air have been conducted using a combination of X-ray Photoelectron Spectroscopy (XPS), Time-Of-Flight Secondary Ion Mass Spectrometry (TOF-SIMs) and solar cell device data. After ageing, XPS studies show that PCPDTBT appears as an oxygen-containing polymer, with data indicating that a break-up in the aromatic rings, formation of sulphates at the thiophene ring, chain scission in the polymer backbone and also loss of side chains. XPS studies have also been conducted on Phenyl-C71-butyric acid methyl ester (PC71BM) films and show a breakage of the fullerene cage, loss of molecular shape and oxidation of carbon atoms in the fullerene cage and side chains after ageing. XPS studies on active layers blends of PCPDTBT and PCBM also show significant changes in the vertical composition during ageing, with increased enrichment of PCPDTBT observed at the top surface and that the use of a processing additive (ODT) has a negative impact on the morphological stability. Based on these studies, it shown that inverted structures are better suited than non-inverted devices for PCPDTBT:PCBM solar cells. An additional advantage of inverted devices is shown using TOF-SIMS; electrode degradation during ageing experiments leads to migration of indium and tin ions into the active layer in non-inverted devices, but is eliminated for inverted devices.
Citation
Kettle, J., Waters, H., Ding, Z., Horie, M., & Smith, G. C. (2015). Chemical changes in PCPDTBT:PCBM solar cells using XPS and TOF-SIMS and use of inverted device structure for improving lifetime performance. Solar Energy Materials and Solar Cells, 141, 139-147. doi: http://dx.doi.org/10.1016/j.solmat.2015.05.016
Publisher
Elsevier
Journal
Solar Energy Materials and Solar Cells
Research Unit
URI
http://hdl.handle.net/10034/558267
DOI
10.1016/j.solmat.2015.05.016
PubMed ID
PubMed Central ID
Type
Article
Language
en
Description
Series/Report no.
ISSN
0927-0248
EISSN
ISBN
ISMN
Gov't Doc
Test Link
Sponsors
HW would like to thank Bangor University for financial support through his “125 scholarship” from the University. ZD is supported from the “SteelPV” project, which is funded from the EC’s Research Fund for Coal and Steel (RFCS) research programme under grant agreement number RFSR-CT-2014-00014. Finally, JK would like to thank the Royal Academy of Engineering for funding via the Newton Research Collaboration Programme (NRCP/1415/28).
Additional Links
http://linkinghub.elsevier.com/retrieve/pii/S0927024815002214
