Online conductivity calibration methods for EIT gas/oil in water flow measurement
Jia, Jiabin Wang, Mi Faraj, Yousef Wang, Qiang
Jia, Jiabin
Wang, Mi
Faraj, Yousef
Wang, Qiang
Advisors
Editors
Other Contributors
EPub Date
Publication Date
2015-07-02
Submitted Date
Collections
Files
Loading...

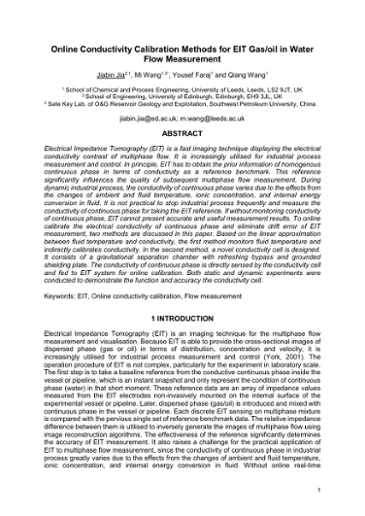

Main article
Adobe PDF, 305.82 KB
Other Titles
Abstract
Electrical Impedance Tomography (EIT) is a fast imaging technique displaying the electrical conductivity contrast of multiphase flow. It is increasingly utilised for industrial process measurement and control. In principle, EIT has to obtain the prior information of homogenous continuous phase in terms of conductivity as a reference benchmark. This reference significantly influences the quality of subsequent multiphase flow measurement. During dynamic industrial process, the conductivity of continuous phase varies due to the effects from the changes of ambient and fluid temperature, ionic concentration, and internal energy conversion in fluid. It is not practical to stop industrial process frequently and measure the conductivity of continuous phase for taking the EIT reference. If without monitoring conductivity of continuous phase, EIT cannot present accurate and useful measurement results. To online calibrate the electrical conductivity of continuous phase and eliminate drift error of EIT measurement, two methods are discussed in this paper. Based on the linear approximation between fluid temperature and conductivity, the first method monitors fluid temperature and indirectly calibrates conductivity. In the second method, a novel conductivity cell is designed. It consists of a gravitational separation chamber with refreshing bypass and grounded shielding plate. The conductivity of continuous phase is directly sensed by the conductivity cell and fed to EIT system for online calibration. Both static and dynamic experiments were conducted to demonstrate the function and accuracy the conductivity cell.
Citation
Jia, J., Wang, M., Faraj, Y., Wang, Q. (2015). Online Conductivity Calibration Methods for EIT Gas/oil in Water Flow Measurement. Flow Measurement and Instrumentation, 46, 213-217
Publisher
Elsevier
Journal
Flow Measurement and Instrumentation
Research Unit
DOI
10.1016/j.flowmeasinst.2015.07.002
PubMed ID
PubMed Central ID
Type
Article
Language
Description
Series/Report no.
ISSN
0955-5986
