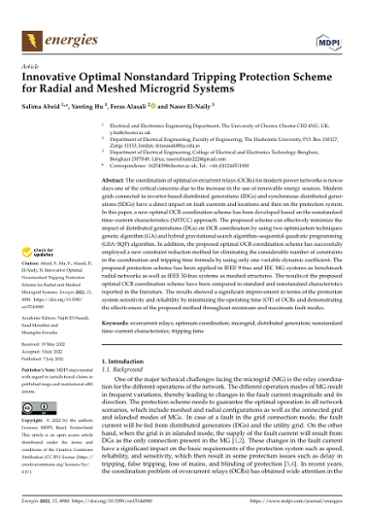

Innovative Optimal Nonstandard Tripping Protection Scheme for Radial and Meshed Microgrid Systems
Abeid, Salima Hu, Yanting Alasali, Feras El-Naily, Naser
Abeid, Salima
Hu, Yanting
Alasali, Feras
El-Naily, Naser
Advisors
Editors
Other Contributors
EPub Date
Publication Date
2022-07-07
Submitted Date
Collections
Files
Loading...
Article - VoR
Adobe PDF, 3.72 MB
Other Titles
Abstract
The coordination of optimal overcurrent relays (OCRs) for modern power networks is nowadays one of the critical concerns due to the increase in the use of renewable energy sources. Modern grids connected to inverter-based distributed generations (IDGs) and synchronous distributed generations (SDGs) have a direct impact on fault currents and locations and then on the protection system. In this paper, a new optimal OCR coordination scheme has been developed based on the nonstandard time–current characteristics (NSTCC) approach. The proposed scheme can effectively minimize the impact of distributed generations (DGs) on OCR coordination by using two optimization techniques: genetic algorithm (GA) and hybrid gravitational search algorithm–sequential quadratic programming (GSA–SQP) algorithm. In addition, the proposed optimal OCR coordination scheme has successfully employed a new constraint reduction method for eliminating the considerable number of constraints in the coordination and tripping time formula by using only one variable dynamic coefficient. The proposed protection scheme has been applied in IEEE 9-bus and IEC MG systems as benchmark radial networks as well as IEEE 30-bus systems as meshed structures. The results of the proposed optimal OCR coordination scheme have been compared to standard and nonstandard characteristics reported in the literature. The results showed a significant improvement in terms of the protection system sensitivity and reliability by minimizing the operating time (OT) of OCRs and demonstrating the effectiveness of the proposed method throughout minimum and maximum fault modes.
Citation
Abeid, S., Hu, Y., Alasali, F., & El-Naily, N. (2022). Innovative optimal nonstandard tripping protection scheme for radial and meshed microgrid systems. Energies, 15(14), article-number 4980. https://doi.org/10.3390/en15144980
Publisher
MDPI
Journal
Energies
Research Unit
DOI
10.3390/en15144980
PubMed ID
PubMed Central ID
Type
Article
Language
Description
© 2022 by the authors. Licensee MDPI, Basel, Switzerland.
Series/Report no.
ISSN
EISSN
1996-1073
